Danh mục sản phẩm IFM

NHÀ CUNG CẤP
Danh mục sản phẩm >

Encoders

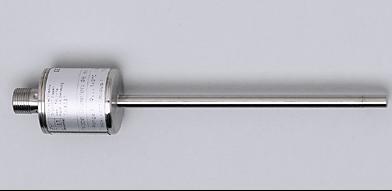

TA3233

TA3233
Mã sản phẩm: TA3233 |‌ TA-123FLDD06-A-ZVG/US/
Nhà sản xuất: IFM, Germany
Temperature transmitter 6 mm clamp adapter
Connector Process connection: Ø 6 mm
Installation length: 123 mm Max. medium temperature
150°C / 302°F (max. 40 min.) Analogue output Measuring range: -17.8...148.9 °C / 0...300 °F
Measuring element: 1 x Pt 1000, to DIN EN 60751, class A  Application
Application  liquids and gases Minimum installation depth [mm]  15
 Electrical data Electrical design  DC Operating voltage [V]  10...30 DC
Protection class  III Reverse polarity protection  yes
 Outputs Output  Analogue output Output function  4...20 mA analogue

TD2237

TD2237
Mã sản phẩm: TD2237 |‌ TD-100CFED06-A-ZVG/US
Nhà sản xuất: IFM, Germany
Temperature Transmitter with Display Process connection: Ø 6 mm
Installation length: 100 mm Analogue output Measuring range: -50...150 °C / -58...302 °F
Measuring element: 1 x Pt 1000, to DIN EN 60751, class A  Application
Application  liquids and gases  Electrical data
Electrical design  DC Operating voltage [V]  18...32 DC; "supply class 2" to cULus. Current consumption [mA]  < 50

TD2247

TD2247
Mã sản phẩm: TD2247 |‌ TD-150CFED06-A-ZVG/US
Nhà sản xuất: IFM, Germany
Temperature Transmitter with Display Process connection: Ø 6 mm
Installation length: 150 mm Analogue output Measuring range: -50...150 °C / -58...302 °F
Measuring element: 1 x Pt 1000, to DIN EN 60751, class A  Application
Application  liquids and gases  Electrical data Electrical design  DC
Operating voltage [V]  18...32 DC; "supply class 2" to cULus. Current consumption [mA]  < 50

TD2267

TD2267
Mã sản phẩm: TD2267 |‌ TD-250CFED06-A-ZVG/US
Nhà sản xuất: IFM, Germany
Temperature Transmitter with Display Process connection: Ø 6 mm
Installation length: 250 mm Analogue output
Measuring range: -50...150 °C / -58...302 °F Measuring element: 1 x Pt 1000, to DIN EN 60751, class A  Application Application  liquids and gases  Electrical data Electrical design  DC
Operating voltage [V]  18...32 DC; "supply class 2" to cULus.

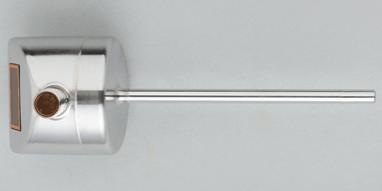

TD2217

TD2217
Mã sản phẩm: TD2217 |‌ TD-050CFED06-A-ZVG/US
Nhà sản xuất: IFM, Germany
Temperature Transmitter with Display Process connection: Ø 6 mm
Installation length: 50 mm Analogue output
Measuring range: -50...150 °C / -58...302 °F Measuring element: 1 x Pt 1000, to DIN EN 60751, class A  Application Application  liquids and gases
 Electrical data Electrical design  DC Operating voltage [V]  18...32 DC; "supply class 2" to cULus.

RM3006

RM3006
Mã sản phẩm: RM3006 |‌ RMS0025-E24/E
Nhà sản xuất:
Datasheet Accessories Operating instructions CAD More information  Collapse all categories
 Product characteristics Multiturn Profibus data interface Terminals Synchro-flange 8192 steps 4096 revolutions  Electrical data Operating voltage [V]  10...30 DC Current consumption [mA]  100 (24 V DC)
